Insertion loss measurements.

Updated: Oct 27



FT240-31 ===> FT240-31 FT240-31 ===> FT240-43


FT240-31 ===> FT240-61 FT240-31 ===> FT240-77


FT240-31 ===> FT240-31 FT240-31 ===> FT240-43


FT240-31 ===> FT240-61 FT240-31 ===> FT240-77

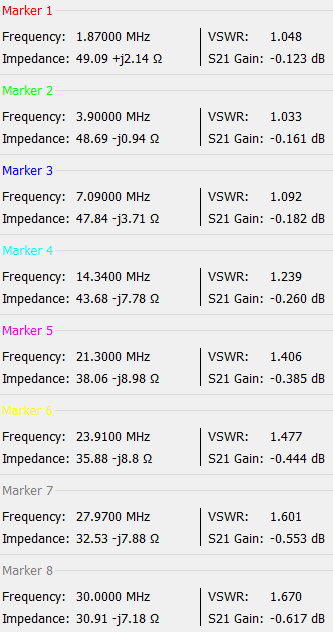

FT240-31 ===> FT240-31 IL for 2 devices

IL for 1 device:


1.8MHz = 0,08 dB 3.8MHz = 0,09 dB 7.2MHz = 0,10 dB 14.3 MHz = 0,16 dB 21.3MHz = 0,24 dB 24MHz = 0,28 dB 28MHz = 0,35 dB 30MHz = 0,39 dB

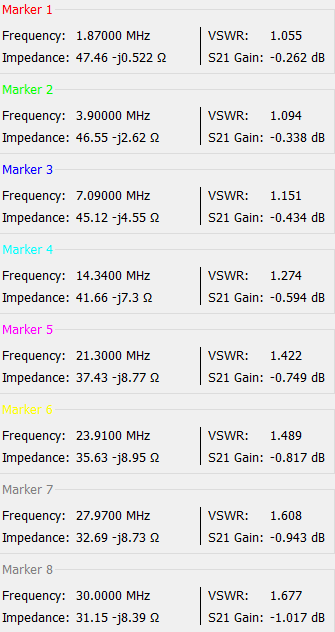

FT240-31 ===> FT240-43 IL for 2 devices

IL for 1 device:

1.8MHz = 0,04 dB 3.8MHz = 0,07 dB 7.2MHz = 0,08 dB 14.3 MHz = 0,10 dB 21.3MHz = 0,14 dB 24MHz = 0,16 dB 28MHz = 0,20 dB 30MHz = 0,23 dB


FT240-31 ===> FT240-61 IL for 2 devices

IL for 1 device:


1.8MHz = 0,10 dB 3.8MHz = 0,02dB 7.2MHz = 0,01 dB 14.3 MHz = 0,02 dB 21.3MHz = 0,07 dB 24MHz = 0,09 dB 28MHz = 0,13 dB 30MHz = 0,16 dB




FT240-31 ===> FT240-77 IL for 2 devices


IL for 1 device:


1.8MHz = 0,18 dB 3.8MHz = 0,24 dB 7.2MHz = 0,33 dB 14.3 MHz = 0,43 dB 21.3MHz = 0,51 dB 24MHz = 0,54 dB 28MHz = 0,59 dB 30MHz = 0,63 dB
