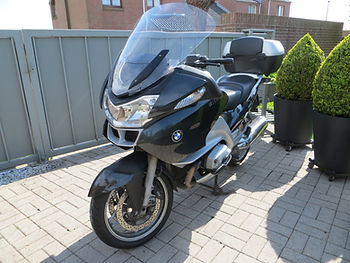

Start situation:


Step 1: remove the small fairing panels.


Step 2: remove the large fairing panels.


Step 3: remove the brake calipers. Step 4: remove the front mudguard.


Step 5: remove the front wheel.


Step 6: move the handle bars to give access to the nut securing the fork top.


Step 7: Counter-hold the fork top bold Step 8: loosen the bolds securing
and undo the the fork top nut. the fork to the bridge.


Step 9: remove the dust seal and undo Step 10: withdraw the
the small air bleed screw. tube from the slider.


Step 11: Prise the clip out and remove the old oil seal by using a large screw driver. take care not to damage the slider.
Step 12: measure the amount of old oil in the fork and replace it with new oil.
Step 13: replace the tube into the slider with the new oil.
Step 14; place a new oil seal over Step 15: replace the clip.
the tube into the slider.


Step16: place the dust seal Step 17: place the air bleed screw


Step 18: Put the restored forks back in place.
